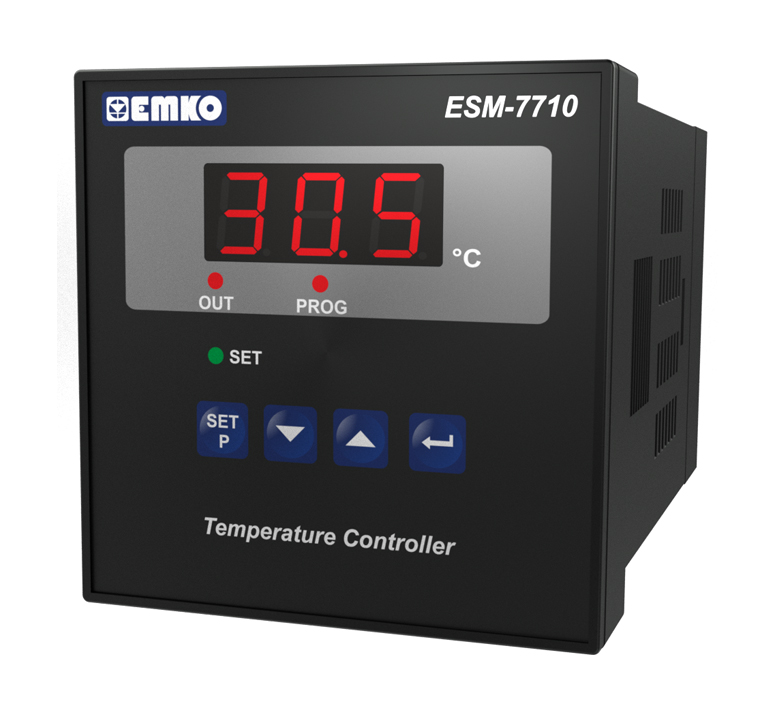

ESM-7710
Digital ON/OFF Temperature Control Device
ESM-XX10 series temperature controllers are designed for measuring and controlling temperature. They can be used in many applications with On/Off control form and heating and cooling selection. Some application fields; Glass, Plastic, Petro-Chemistry, Textile, Automative Machine Production Industries.
Technical Specifications
| Display and Front Panel | |
| Buttons | SetP, direction and enter buttons |
| Led Indicators | SET (Green), OUT (Red), PROG (Red) 3 mm |
| Display | 14 mm Red 3 digits LED display |
| Body | |
| Physical Features | 72 mm x 72 mm 95,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Weight | Approximately 0.21 Kg. |
| Installation | Fixed Installation |
| Electrical Features | |
| Supply Voltage and Power | 230 V ~ (+%15) 50/60 Hz. 1.5 VA 115 V ~ (+%15) 50/60 Hz. 1.5 VA 24 V ~ (+%15) 50/60 Hz. 1.5 VA 24 Vac/dc ~ (+%15, +%10) 50/60 Hz. 1.5 VA |
| Sensor Inputs | NTC, PTC, TC, RTD NTC (10k @.25 ℃) PTC(1000 @.25 ℃) J, K (IEC584.1)(ITS90) PT-100, PT-1000 (IEC751)(ITS90) |
| Scale | Fe CuNi 0℃...800℃ NiCr 0℃...999℃ PT 100 -50℃...400℃ / -19,9℃...99.9℃ NTC -50℃...100℃ / -19,9℃...99.9℃ PTC -50℃...130℃ / -19,9℃...99.9℃ |
| Accuracy | ± % 1 of full scale for Thermocouple and Thermoresistance |
| Outputs | |
| Relay Output | 7A@250 V~ at resistive load |
| 2nd Relay Output (Optional) | 7A@250 V~ at resistive load |
| Control | |
| Hysteresis | 1 to 100℃for TC type devices, 1 to 100℃for PT-100 (-50℃, 400℃) and PT-1000 (-50℃, 400℃) , 0.1 to 10.0℃PT-100 (-19.9℃, 99.9℃) and PT-1000 (-19.9℃, 99.9℃), 0.1 to 10.0℃PTC (-19.9℃, 99.9℃) and NTC (-19.9℃, 99.9℃) 1 to 20℃PTC (-50℃, 130℃) and NTC (-50℃, 100℃) |
| Control Form | On / Off |
| Reading Frequency | 3 readings per second |
| Quality Standarts | |
| Approvals | GOST-R, CE |
